NAMUGA offers a range of solutions featuring high-sensitivity, low-power, compact designs, optimized for AR and VR devices through refined design and stabilized manufacturing processes.
Specification
Motion Tracking Camera (Head/Hand)
- Motion camera detects head orientation and skeleton hand movements in XR devices, translating user actions into real-time video reflections. This enhances interactive experiences by accurately capturing and integrating user motion.
| Product | Sensor | Lens | Distance Range | Depth Accuracy | |
|---|---|---|---|---|---|
 |

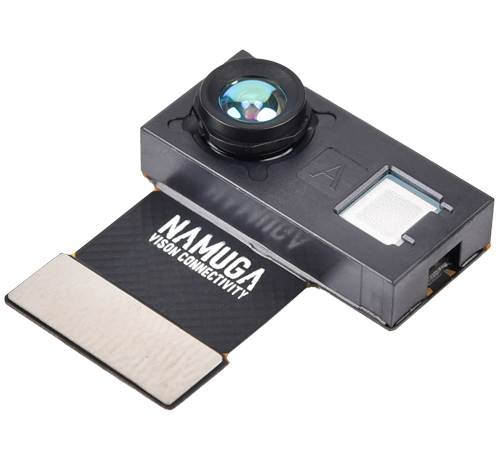

Titan100 | QVGA | 85°(H), 69°(V), 100°(V) f1.3 | 0.3~7.5m | ±3%@500mm |
 |
Pinocchio | HQVGA | 57.4°(H), 44.6°(V), 70.1°(H) f1.1 | Landscape mode: 0.2~7.0m Roomscape mode: 0.2~7.0m |
±1%@500mm |
World View Camera
- In AR environments, our camera modules play a crucial role by capturing the surrounding environment and merging the virtual and real worlds. With wide-angle views and high-resolution imaging, our modules deliver an immersive visual experience in augmented reality.
| Product | Resolution | Sensor | Lens | Size | |
|---|---|---|---|---|---|
 |
8F501X | 8M | RGB | 77.4°(D) f2.0 | 8.5x8.5x19.9 |
 |
8F600W | 8M | RGB | 118.8°(D) f2.2 | 7x7x6.25 |
 |
WF400W | 32M | RGB | 130.8°(D) f2.2 | 9x9x17.8 |
Eye Tracking Camera
- Advanced Eye Tracking technology swiftly and accurately detects user gaze, enabling intuitive and personalized VR interfaces. This innovation facilitates interactive virtual reality experiences, revolutionizing user engagement.
| Product | Sensor | Lens | Wavelength (nm) | |
|---|---|---|---|---|
 |
VF100X | 400x400 | 90°(D) f2.2 | Visible / 850 |
 |
VF203X | VGA | 160°(D) f1.8 | Visible / 850 |
 |
VF204X | VGA | 160°(D) f1.8 | Visible / 850 |
 |
VF400X | 400x400 | 90°(D) f2.2 | 850~940 |
Core Technology
Advanced Data Processing Solutions
Our software management technologies include:
- Comprehensive raw data processing
- Precise temperature compensation
- Intrinsic calibration of lens parameters
- Software-based noise reduction filters
- Custom-developed IPs for optimizing 3D data efficiency
Custom 3D Optical Lens Solutions
- Tailored ToF lenses: FOV, F#, RI, etc.
- Slim lens design for compact modules
Tx illumination (Projector)
- Specialized packaging for VCSEL projectors
- Custom optical designs for diffusers and spot DOEs
- Dual-mode (switching) for spot and flood light
Core Components Through Strategic Partnerships
- Leveraging our strategic partnerships with top 3D sensor suppliers, we bring mass production expertise and advanced 3D sensor solutions to our clients.
